View In:   ArcGIS Online Map Viewer

Name: Lega Lot LeaderLine

Display Field: AUTOCAD_LAYER

Type: Feature Layer

Geometry Type: esriGeometryPolyline

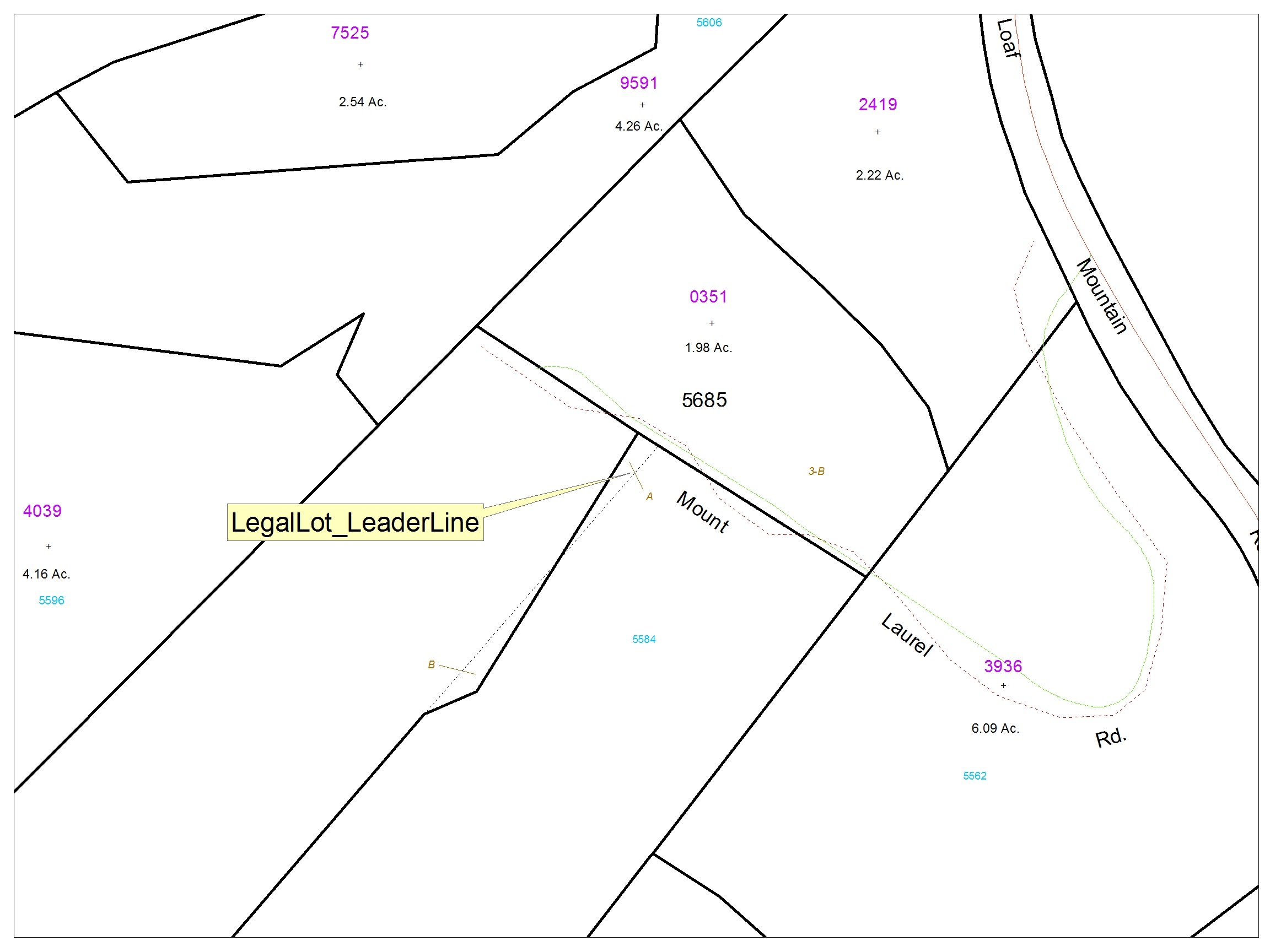

Description: Simple line feature used with LegalLot_anno if a leaderline is required. This occurs when the parcel is so small that the LegalLot_anno will not fit inside the parcel.

Service Item Id: a4b715a303ba402d8079baa60137bf7e

Copyright Text: Wingate Mapping Service

Default Visibility: true

MaxRecordCount: 20000

MaxSelectionCount: 0

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 1.0992035173217475E7
YMin: 3593954.0188369006
XMax: 1.1082782091132715E7
YMax: 3656679.6830834746
Spatial Reference: 102747  (2284)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [239, 252, 209, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: false
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• AUTOCAD_COLOR ( type: esriFieldTypeDouble, alias: AUTOCAD_COLOR, editable: true, nullable: true, defaultValue: null, modelName: AUTOCAD_COLOR )
• AUTOCAD_LAYER ( type: esriFieldTypeString, alias: AUTOCAD_LAYER, editable: true, nullable: true, length: 50, defaultValue: null, modelName: AUTOCAD_LAYER )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.STLength(), editable: false, nullable: true, defaultValue: null, modelName: SHAPE.STLength(), required: true )

Templates:

• Name: Lega Lot LeaderLine
  Description:
  Prototype:
  AUTOCAD_COLOR: null
  AUTOCAD_LAYER: null

  Drawing Tool: esriFeatureEditToolLine

Capabilities: Query,Extract

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Child Resources:

Supported Operations:   Query   Query Analytic   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata   Update Metadata
